Tổng quan

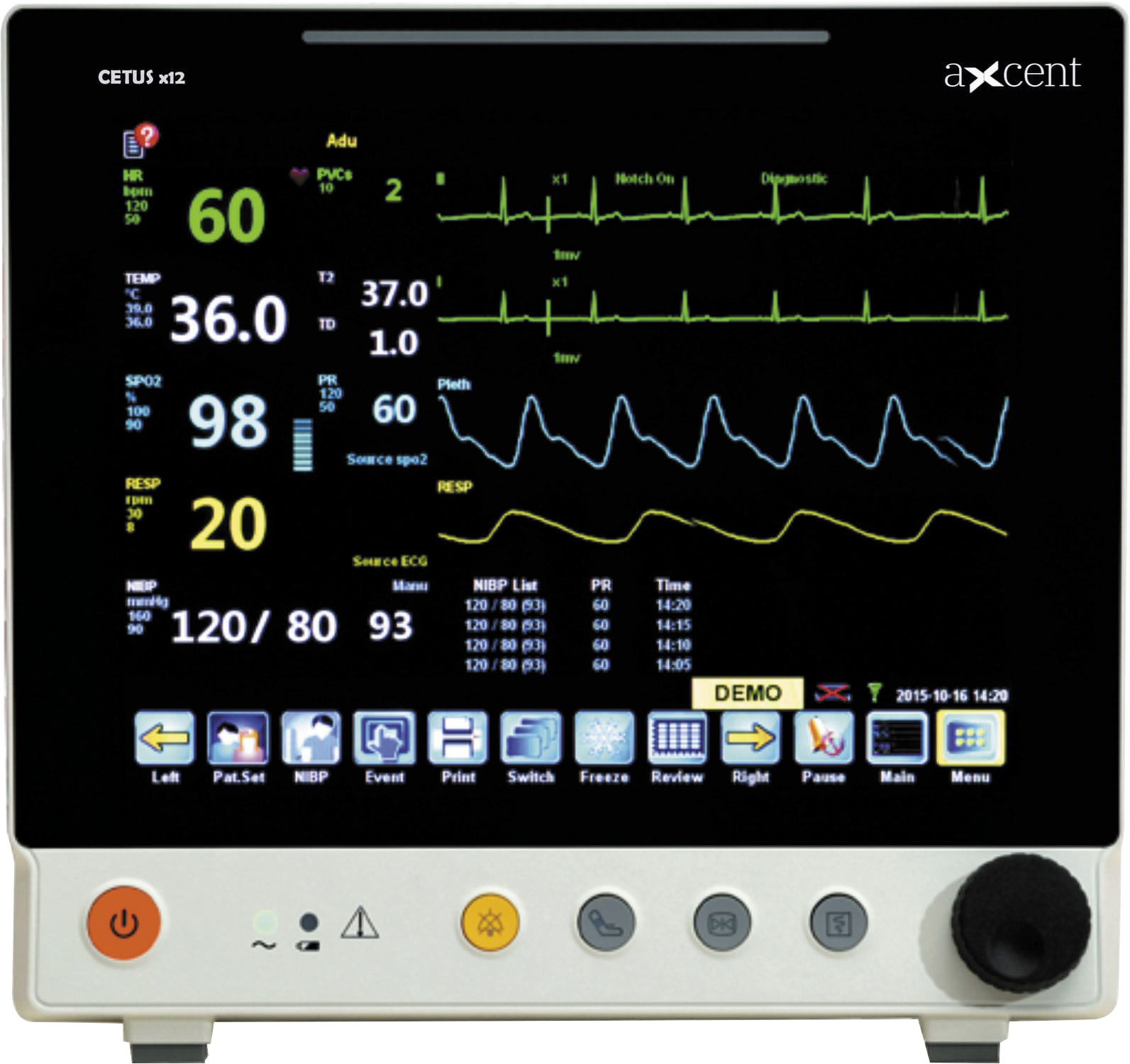

Multi-Parameter Patient Monitor with flexible Configuration and reliable Features
- 12.1” color TFT LCD screen
- 8 waveform display, up to 12-lead ECG analysis
- Useful calculation (Hemodynamic, Drug Dose, Oxygenation, Ventilation)
- Pacemaker detection
- ST & arrhythmia analysis
- OxyCRGs screen
- Wired/Wireless CMS, support HL7 protocol to HIS
- SpO2 pulse-tone modulation (Pitch Tone)
- MEWS (Modified Early Warning Score)
- Graphical & tabular trend review (120 hours)
- Rechargeable Lithium-Ion Battery (2.600 mAh)
Configuration:
ECG, Analog SpO2, NIBP, 2x TEMP, PR, RESP, Li-ion battery
Optional:
Touch-Screen, 12-lead ECG, Digital or Masimo SpO2, 2/4/6 IBP, Cardiac Output, EtCO2 Analyzer, Multi-Gas Analyzer, BIS, NMT, HDMI, Thermal Recorder, Wired/Wireless CMS
Thông số kỹ thuật
Display
12.1” TFT (touch screen optional)
Resolution: 800 x 600
Number of traces: 8 waveforms
ECG
Lead type: 3-lead, 5-lead, 12-lead
ECG waveform: 2 channels, 7 channels,
12 channels
Display sensitivity: 2.5 mm/mV (×0.25),
5 mm/mV (×0.5), 10 mm/mV (×1.0),
20 mm/mV (×2.0)
Wave sweep speed: 6.25 mm/s, 12.5 mm/s,
25 mm/s, 50 mm/s
Bandwidth
Diagnostic mode: 0.05 Hz~100 Hz
Monitor mode: 0.5 Hz~40 Hz
Surgery mode: 1Hz~20Hz
Strong filter mode: 5 Hz~20 Hz
CMRR >100 dB
Notch: 50/60 Hz notch filter can be set to
on or off
Differential input impedance >5MΩ
Electrode polarization voltage range: ±400 mV
Baseline recovery time <3s after defibrillation
(in monitor and surgery mode)
Calibration signal: 1mV (peak – peak),
accuracy ±3%
RESP
Measurement method: Thoracic electrical
bioimpedance
Rate: 0 – 150 bpm
Measuring lead: Lead I, II
Wave gain: ×0.25, ×0.5, ×1, ×2
Respiratory impedance range: 0.5-5Ω
Baseline impedance: 500-4000Ω
Gain: 10 grades
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
Pulse Rate
Range: 30~254 bpm
Resolution: 1bpm
Accuracy: ±2bpm (non-motion)
±5bpm (motion)
Refreshing rate: 1s
TEMP
Accuracy: ±0.1 °C or ±0.2 °C °F (without probe)
Measurement range: 5~50 °C (41~122 °F)
Channel: Two channels
Resolution: 0.1 °C
Parameters: T1,T2 and TD
NIBP
Measurement method: Automatic oscillometric method
Operating mode: Manual, automatic,
continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40 s
Measurement type: Systolic, Diastolic, Mean
Measurement range (mmHg)
Range of Systolic pressure: Adult 40-270
Pediatric 40-200
Neonatal 40-135
| Range of Diastolic pressure: Adult |
10-210 |
Pediatric 10-150
Neonatal 10-95 |
| Range of Mean pressure: |
Adult |
20-230 |
Pediatric 20-165
Neonatal 20-105
Measurement accuracy
Maximum average error: ±5 mmHg
Maximum standard deviation: 8 mmHg
Resolution: 1 mmHg
Interval: 1, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180,
240, 480 minutes
Overpressure protection: Software and
hardware, double safety protection
Cuff pressure range: 0-280 mmH
SpO2
Measurement range: 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric);
±3% (70-100%, Neonate);
0-69%, unspecified
Refreshing Rate: 1s
Masimo SET® SpO2 (Optional)
Measurement range: 0-100%
Resolution: 1%
Accuracy: ±2% (70-100%, Adult/Pediatric,
non-motion, low prefusion);
±3% (70-100%, Neonate,
non-motion);
±3% (70-100%, motion);
0-69%, unspecified
Refreshing Rate: 1s
Recorder (Optional)
Built-in, Thermal dot array
Horizontal resolution: 16 dots/mm (25 mm/s
paper speed)
Vertical resolution: 8 dots/mm
Paper speed: 25 mm/s, 50 mm/s
Number of waveform channels: 3
Operation Environment
Power: AC 100-250V, 50/60Hz
Temperature: 5-40 °C
Humidity: <80%
Patient Range: Adult, Pediatric, Neonate
Battery backup: Standard 2-3 hrs (2.600 mAh),
optional 3-5 hrs (4.800 mAh)
